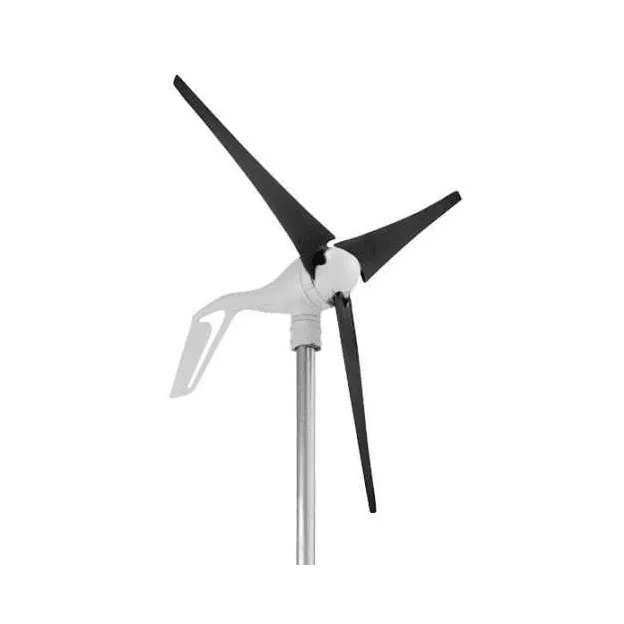

The Windpower Air 40 Wind Turbine by Primus
The Air 40 by Primus is the premier micro-wind turbine for land-based applications.
Efficient operation across a wide range of wind speeds makes the Air 40 ideal for pairing with solar to offset seasonal variation, delivering more consistent energy.
-
Advanced microprocessor technology for superior performance and high wind protection without mechanical braking.
-
Blades designed for quieter operation, durability and optimum energy capture in most wind speeds.
-
Lightweight design is simple and easy-to-install; integrated controller for plug-and-play operation
-
Pair with solar PV for redundant energy production year-round.
-
Produces 40 kWh of energy per month generating energy in a wide range of wind speeds
Specifications
| Energy | Approx. 40 kWh/mo at 5.8 m/s (13 mph) |
|---|---|
| Swept Area | 1.07 m2 (11.5 ft2) |
| Rotor Diameter | 1.17 m (46 in) |
| Weight | 5.9 kg (13 lb) |
| Shipping Dimensions | 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb) |
| Startup Wind Speed | 3.1 m/s (7 mph) |
| Voltage | 12, 24 and 48 VDC |
| Turbine Controller | Mircoprocessor-based smart controller |
| Body | Permanent mold cast aluminum |
| Blades | (3) Injection-molded composite |
| Alternator | Permanent magnet brushless |
| Overspeed Protection | Electronic torque control |
| Survival Wind Speed | 49.2 m/s (110 mph) |
| Mount | 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter |
| Wind Speed Operating Range | 3.1-22 m/s (7-49 mph) |
| Optimum Wind Speed Range | 4.5-22 m/s (10-49 mph) |
Product Guide
Primus Air 40 Wind Turbine Series Manual
The body of the Primus Windpower Air 40 is constructed of permanent mold cast aluminum and the three blades are made of carbon molded composite.

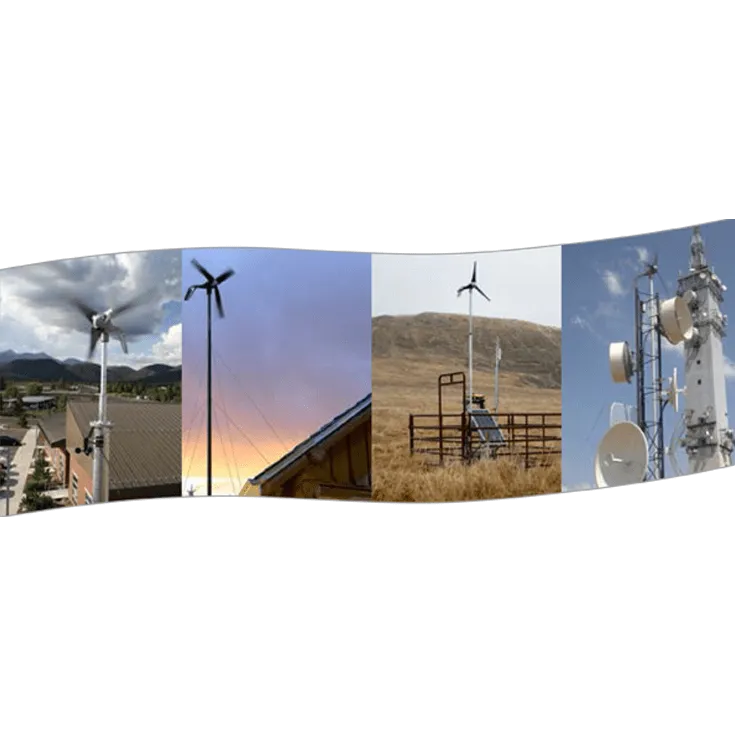

The generator can be used for multiple types of off-grid power applications including telecom, security systems, cabins, tiny homes, and trailers. It can also be used in conjunction with a solar system to supplement battery charging.
Requiring only a 7mph wind for startup, the AIR 40 will produce 40 kWh per month with an average wind speed of 13 miles per hour.
It comes with a built-in microprocessor controlled charge controller and the option of using an external load diversion controller.
The wind generator cannot be connected directly to a power inverter. It must be used to charge a 12-volt battery bank.
Your inverter will get its power from the batteries.
Comes with a 5-year manufacturer's warranty.
Primus Windpower Applications Chart
